Octagonal/Polygonal Poles

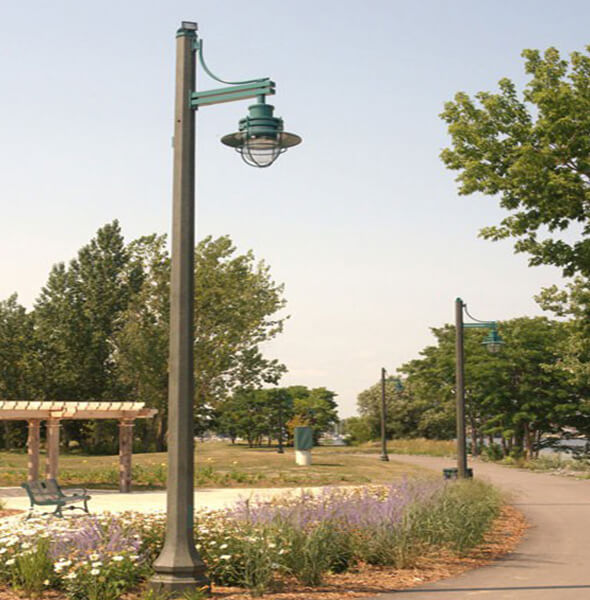

Voltcon supply wide range of octagonal fabricated poles using high-strength steel sheet and can produce single-piece poles up to a length of 18 meters. These poles are primarily used as street lightning poles or for Low Voltage Power Distribution projects. Our octagonal poles are used to securely illuminate private residential areas, commercial and industrial locations. The street lighting pole range is designed with an outreach arm, in either single or double arrangement, as per customer specifications. The door opening of the octagonal pole is vandal resistant and weather proof to ensure safety of internal connections and the welders are well qualified for welding octagonal shafts.

AREAS OF APPLICATION
  • Street Lighting
  • Decorative Lighting
  • Sports Lighting
  • Shopping Centers
  • Airports
  • Railways
  • Hotels
ADVANTAGES OF OUR OCTAGONAL POLES
  • Ease of Installation
  • Galvanized for Longer Life
  • Maintenance Free
  • Sleek and Beautiful Design

Technical Information

S. No Height
(mm)
Thickness
(mm)
Top A/F
(mm)
Bottom A/F
(mm)
Base Plate
(mm)
PCD
(mm)
Foundation Bolt
(mm)
Door Opening Leng
(mm)
1 3000 3 70 130 200X200X12 200 M16X450 370
2 4000 3 70 130 200X200X12 200 M16X450 370
3 5000 3 70 130 220X220X12 220 M20X600 370
4 6000 3 70 130 220X220X12 220 M20X600 420
5 7000 3 70 135 220X220X12 220 M20X700 420
6 8000 3 70 135 225X225X16 225 M20X700 420
7 9000 3 70 155 260X260X16 260 M24X750 500
8 10000 3 70 175 275X275X16 275 M24X750 500
9 10000 3 90 210 300X300X20 300 M24X750 500
10 11000 3 90 210 300X300X20 300 M24X750 500
11 12000 3 90 230 335X335X25 325 M24X750 500
